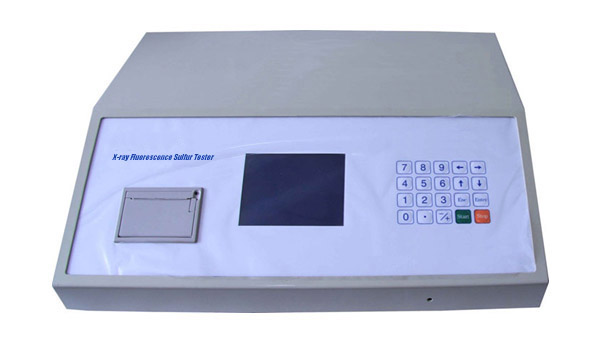

BD-D4294-03 New X-ray Fluorescence Oil Sulfur Analyzers

Name: BDD429403 New Xray Fluorescence Oil Sulfur Analyzers
Brand: SHUOBODA
Price: 1 USD

Buy cheap BD-D4294-03 New X-ray Fluorescence Oil Sulfur Analyzers product

Brand Name : SHUOBODA

Model Number : BD-D4294-03 New

Certification : ISO/CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 500 sets/month

Delivery Time : 5~8 working days

Packaging Details : Plywood packing

Measurement range : 7 ppm to 6%;

Precision : Repeatability: <0.02894 (X+0.1691); Reproducibility: <0.1215 (X+0.05555);

Sample quantity : 2 to 3 ml (it is equal to sample depth of 3 mm to 4 mm);

Power supply : AC 220V±20V, 50 Hz;

Size and weight : 260mm×460mm×260mm;

NW/GW : 11/16 kg;

Contact Now

BD-D4294-03 New X-ray Fluorescence Oil Sulfur Analyzers

Automatic tests sulfur content rate in liquid oil or thin powder reach up to 7ppm the fastest in 30 seconds.

Product Overview

BD-D4294-03 X-ray Fluorescence Sulfur in Oil Analyzer instrument is specially designed to determine sulfur content in petroleum products. Adopting energy-dispersive principle with integrated design, it provides rapid and accurate measurements that meet the requirements of National Standard GB/T 17040, GB/T 11140, and ASTM D4294-03 for repeatability and reproducibility.

Environmental pollution is attracting increasing government and public concern. The key contributors to atmospheric destruction are CO2 and SO2 emissions from fuel combustion. Lowering sulfur content in gasoline, diesel oil, and heavy oils used in vehicles, ships, and airplanes significantly reduces atmospheric pollution. SO2 can also cause catalyst poisoning in petrochemical industry and form acid rain.

Applicable Standards

GB/T 17040, GB/T 11140, ASTM D 4294-03

Applications

Mass percentage of total sulfur in crude petroleum, petroleum, heavy oil, diesel oil, gasoline, and naphtha
Total sulfur content in coal chemical industry products, such as primary benzene
Total sulfur or sulfide in other liquid or solid powder samples

Key Features

Electromechanical integration with microprocessor control and 8-inch IPS capacitive touch screen
Rapid analysis in 30 seconds with minimal standard sample requirement
Automatic temperature, pressure, and carbon/hydrogen ratio correction using fluorescence intensity ratio analysis
Self-diagnostic function for monitoring working state and electrical parameters
Disposable sample cell with Mylar film to prevent cross contamination
Automatic working curve selection and peak stabilization
Precisely located sample holder with external access for convenient maintenance
Extensive data storage: 4096 content analysis results and 8192 count measurement data
Selectable measurement units (m/m % or ppm)
Thermal printer with easy paper replacement
RS232 serial port for data upload to computer or web system
Safe X-ray protection measures

Main Unit and Accessories

BD-D4294-03 New X-ray Fluorescence Oil Sulfur Analyzers

(1) Sample cell (2) Leakage protection device (3) Base of pressure shaping device (4) Cover of pressure shaping device (5) Cell film

New vs Old Model Comparison

Feature	BD-D4294-03 New	BD-D4294-03 Old
Appearance
Dimension	430 × 260 × 260mm	468 × 368 × 136mm
Weight	11 Kg	13 Kg
Display	8-inch wide viewing angle capacitive touch screen	Monochromatic screen
Keyboard	Capacitive touch screen	PVC panel keypad
Software Interface	Smart, simple, easy to learn	--------------------
Working Curve Selection	Automatically choose	Operator selection
Working Curves	10 working curves	9 working curves
Data Storage	4096 content data	1000 content data
Analysis Range	S % max - S % min ≤ 6%	S % max - S % min ≤ 5%

Technical Specifications

Parameter	Specification
Measurement Range	7 ppm to 6%
Precision	Repeatability: <0.02894 (X+0.1691); Reproducibility: <0.1215 (X+0.05555)
Sample Quantity	2 to 3 ml (sample depth of 3 mm to 4 mm)
Measurement Time	30, 60, 120, 150s at random; automatic single sample determination
Calibration Curves	10 calibration curves (5 linear equations, 5 binomial parabola)
Working Conditions	Temperature: 5 to 40 °C; Relative humidity: ≤85% (30 °C)
Power Supply	AC 220V±20V, 50 Hz
Rated Power	50 W
Size and Weight	260mm × 460mm × 260mm; NW/GW: 11/16 kg

Packing List

Item Name	Quantity
Main unit	1 set
Power supply wire	1 piece
Sample cell (three parts)	200 pcs
Sample cell film (6μm Mylar)	200 pieces in two boxes
Leakage protection device (two parts)	1 set
Multifunctional pressure shaping device (two parts)	1 set
Printing paper (57 mm width; Φ30mm)	3 rolls
